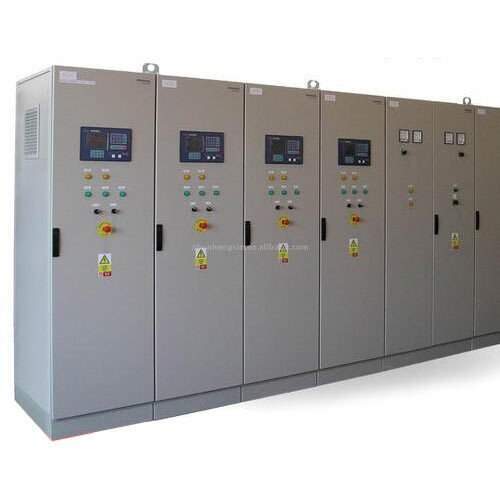

VFD Control Panel Boards

Product Description

Prime tech Engineering offers the complete end to end VFD solutions for various Industrial applications such as Utility pumping requirements, Centrifugal Pump and Blowers, Cooling Tower Fans, Conveyors and screw controls for material handling, HVAC Control etc

• Energy Saving

More than 65% of the power is consumed by electric motors in industries. Both magnitude and frequency control technique to vary the speed consumes less power when variable speed is required by the motor. So a great amount of energy is conserved by these VFD™s.

• Closed Loop Controlling

VFD allows accurate positioning of the motor speed by continuously comparing with reference speed even at changes in the loading conditions and input disturbances like voltage fluctuations.

• Limits Starting Current

Induction motor draws current which is of 6 to 8 times the nominal current at starting. Compared to conventional starters, VFD™s gives better results because it delivers low frequency at the time of starting. Due to low frequency, the motor draws less current and this current never exceeds its nominal rating at starting as well as operating.

• Smooth Operation

It offers smooth operations at starting and stopping and also reduces thermal and mechanical stress on motors and belt drives.

• High Power Factor

Inbuilt power factor correction circuit in the DC link of VFD reduces the need for additional power factor correction devices. The power factor for the induction motor is very low for particularly no-load application, while at full load, it is 0.88 to 0.9. Low power factor results in poor utilization of power due to high reactive losses.

Pre-programmed and factory wired VFD™s offers easy way for connection and maintenance.

Purge and Pressurized panels

Flameproof and Explosion Proof Panels

SIL Safety PLC systems

Distributed Control Systems

IEC 61439 Type Tested Assembly panels
